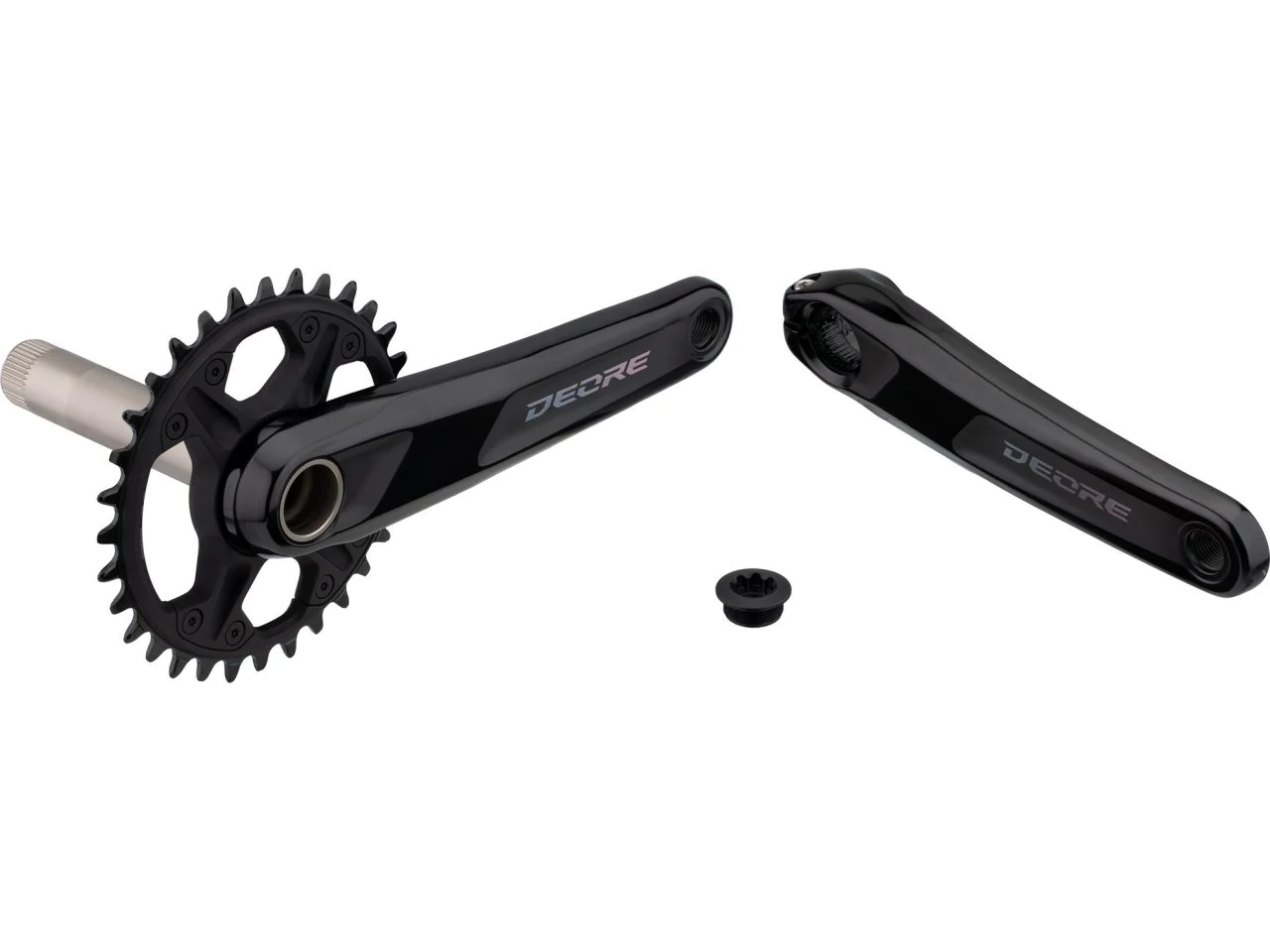

SHIMANO DEORE CRANKSET – FC-M6120 32T 170mm

SHIMANO DEORE CRANKSET – FC-M6120 32T 170mm

Categories: ,

6,640.00

Out of stock

Description

With the Shimano Deore crankset FC-M6120-1 for 12-speed drives, the chain line, i.e. the distance between the frame and the chainring, is 3 mm more than with the FC-M6100-1 crank. It is therefore 55 mm, which makes this model compatible with a 148 mm frame installation width. FC-M6120-1 is equipped with a single chainring for direct mounting, so that mountain bikers benefit from a user-friendly, reliable and low-maintenance set-up. The Dynamic Chain Engagement + technology is responsible for ensuring that the chain runs safely, smoothly and quietly over the teeth. B. was already used in the SLX. Last but not least, this crankset scores with its metallic look including the color gradient in the Deore logo and the 2-piece design, which ensures a balanced ratio of stiffness and weight.

SPECIFICATIONS

  • Application: All Mountain, Enduro, Cross Country
  • Compatibility: Shimano 1×12-speed
  • chainring attachment: Shimano Direct Mount
  • Series: Deore M6100
  • Material crank arms: Aluminum
  • Material chainring: Steel, plastic
  • Material axis: Steel
  • Gradation: 32 teeth
  • Crank arm length: 170.0 mm
  • Chain line: 55 mm
  • Q-factor: 178 mm
  • Axle diameter: 24 mm
  • Compatible housing width (with BSA bottom bracket ): 68 mm, 73 mm
  • bottom bracket (recommended): SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (must be ordered separately)
  • Chain (recommended): HG + 12-speed ( e.g.CN-M6100)

FEATURES

  • Stiff, light 2-piece crank with efficient power transfer for 1×12-speed
  • Suitable for 148 mm installation width at the rear anodized crank arms, painted chainring

MANUFACTURER NUMBERS



  • 170.0 mm 32 teeth: E-FCM61201CXA2

IN THE BOX

  • 1 x Shimano Deore FC-M6120-1 crankset 32 teeth
