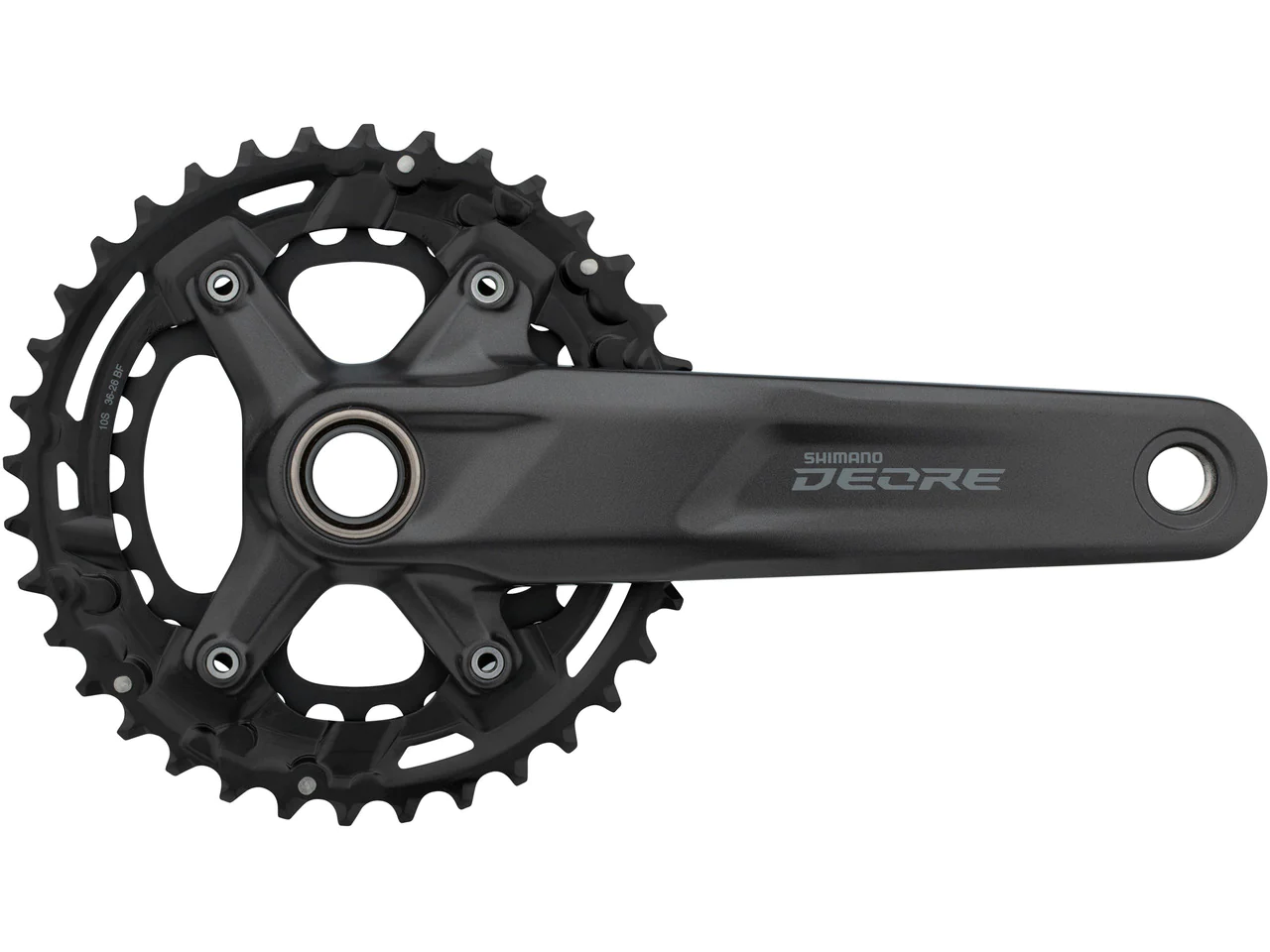

SHIMANO DEORE FC-M4100-2 CRANKSET – FOR 10-SPEED DRIVETRAINS

The Shimano crankset FC-M4100-2 from the Deore series are a cranks with two chainrings for 10-speed drivetrains. It is suitable for both MTB and City & Touring use. The chainrings are mounted via a conventional 4-arm spider. At 48.8 mm, the chainline, i.e. the distance from the frame to the centre between the chainrings, is in the standard range, which is why the crank is compatible with 142 mm over locknut dimensions. The 2-piece construction provides a balanced ratio of stiffness to weight.

SPECIFICATIONS:

Application: All Mountain, City & Touring
Compatibility: Shimano 2×10-speed
Chainring Mount: 96/64 mm pitch circle diameter, 4-arm asymmetrical

TECHNICAL INFORMATION:

Series: Deore M4100
Crankarm Material: aluminium
Chainring Material: steel
Axle Material: steel
Gradation: 26-36
Crankarm Length: 175.0 mm
Chainline: 48.8 mm
Q-Factor: 178.5 mm
Axle Diameter: 24 mm
Compatible BSA Shell Width: 68 mm, 73 mm
Recommended Bottom Bracket: SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (not incl.)
Recommended Chain: HG-X 10-speed (e.g. CN-HG95, CN-HG54)

FEATURES:

– stiff, lightweight 2-piece cranks with efficient power transfer
– suitable for 135 and 142 mm rear over locknut dimensions
– painted crankarms and chainrings
– stainless steel hardware

MANUFACTURER PART NUMBERS:

175.0 mm: EFCM41002EX66

CONTENTS:

– 1 x Shimano Deore FC-M4100-2 crankset (26-36 tooth)
– 1 x Shimano crank bolt
