Description

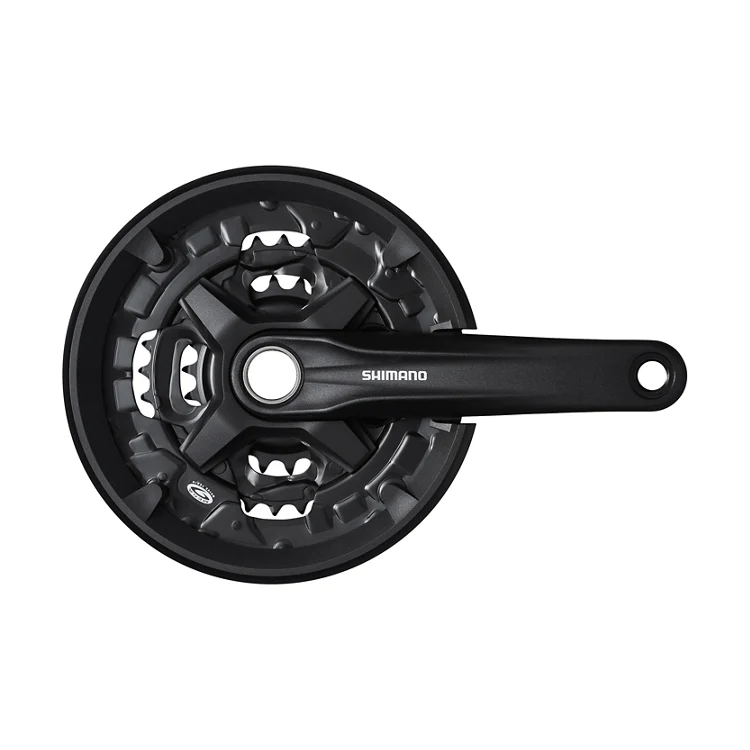

SHIMANO – 2-PIECE CRANKSET – MTB – 3×9-speed
Teath- 40-30-22T
Arm length 170mm
With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-3 is designed for 3×9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.
FEATURE
- Smooth and precise shifting performance for trail focused riders
- Narrow Q-factor provides comfortable MTB riding
- HYPERDRIVE
- Cascading higher series MTB image
- Anodized crank
- 2-PIECE CRANKSET
TECHNOLOGY
2-PIECE CRANK SET
- Integrated crank arm and bottom bracket
- Increased rigidity with less weight
- Wider bearing positioning
- Rigidity is enhanced and pedaling force is efficiently transmitted
- Precision Bearings
- Low maintenance and simplified installation
HG SPROCKETS
The distinctively designed HYPERGLIDE sprockets incorporate specially positioned shift ramps and tooth profiles for improved chain control during shifting. Fast and responsive indexed shifting is the result.
The HG cassette sprocket, which was developed for the MTB 10-speed system, underwent comprehensive optimization to achieve super-highly efficient shifting.
SPECIFICATION
| Rear speeds | 9 | ||
|---|---|---|---|
| Compatible chain | HG 9-speed | ||
| Chainline (mm) | 50 | ||
| P.C.D. (mm) | Riveted | ||
| Gear arms | 4 arm | ||
| Chainring combination | 40-30-22T | ||
| Q-factor (mm) | 176 | ||
| Crank arm length (mm) | |||
| 170.0 | X | ||
| Optional chain guard | With bash guard | – | |
| With chain guard | X | ||
| Without chain / bash guard | X | ||
| HOLLOWTECH II | – | ||
| 2-PIECE CRANKSET | X | ||
| HOLLOWTECH crank arm | – | ||
| OCTALINK | – | ||
| HOLLOWGLIDE | – | ||
| Compatible BB type | Outboard | X | |
| OCTALINK | – | ||
| Square | – | ||
| Recommended BB | Threaded (normal) | BB-MT500 | |
| Threaded (E-type) | – | ||
| Threaded (chain case) | – | ||
| Pressfit | BB-MT500-PA | ||
| Axle length of BB-UN / ES (mm) | Threaded (normal) | – | |
| Threaded (E-type) | – | ||
| Threaded (chain case) | – | ||
| Threaded BB shell width | 68mm | X | |
| 73mm | X | ||
| 83mm | – | ||
| Chain case compatible | – | ||
| Crank arm | Material | Aluminum | |
| Finish | Anodized | ||
| Crank axle | Material | Steel | |
| Finish | Plated | ||
| Outer ring | Material | Steel | |
| Finish | Painted | ||
| Middle ring | Material | Steel | |
| Finish | Painted | ||
| Inner ring | Material | Steel | |
| Finish | Painted | ||
| Stainless chain guard fixing bolt | X | ||
| Crank fixing bolt included | X | ||
