Description

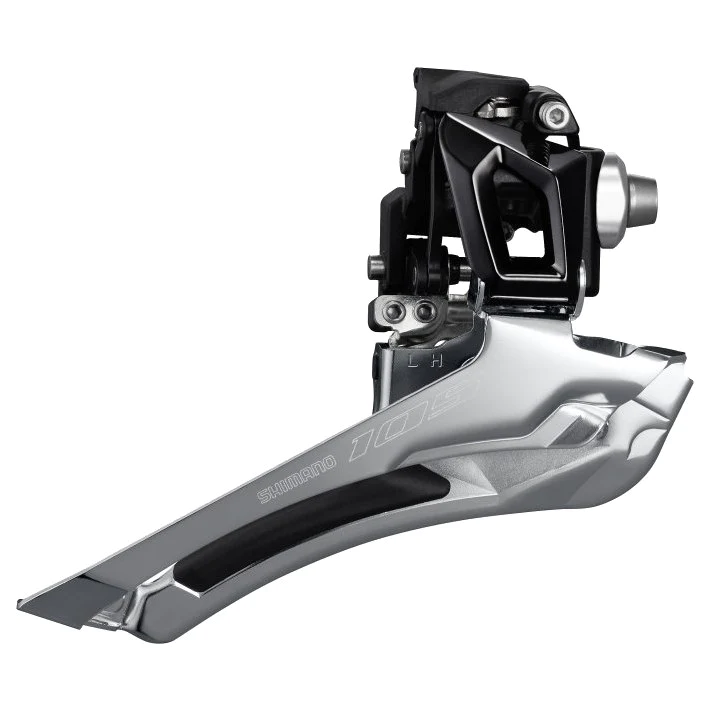

SHIMANO 105 – Front Derailleur 2×11-speed
The new toggle construction on the SHIMANO 105 R7000 front derailleur incorporates an integrated cable tensioner and an optimized cage design that is compatible with disc brake road bikes. It is available in silver and black and braze-on mounting.
- Lighter front shifting operation
- Ergonomic power curve
- New link (toggle) construction
- Natural stroke feeling
- Precise and easy front derailleur adjustment
- More cable routing options
- New link (toggle) construction
- Integrated cable tension adjustment
- Optimized cage design for disc brake road bikes
- Shorter rear center (410 mm) with 135 mm O.L.D.
- Color options: Silky Black, Spark Silver
PRODUCT SPECIFICATIONS
| MODEL NO | FD-R7000-F |
|---|---|
| SERIES | SHIMANO 105 R7000 Series |
| Color | Silky black | |
| mounting | braze-on |
| Action_Down Swing | ✔ |
|---|---|
| Cable adjust | ✔ |
| Chain line (mm) | 43.5 |
| Chain stay angle | 61 – 66 |
| Compatible chain | HG-EV 11-speed/HG-X11 |
| Link bushings | 7 |
| Mount_Brazed-On | ✔ |
| Speeds_Front | 2 |
| Speeds_Rear | 11 |
| Top gear teeth | 46-53T |
| Total capacity | 16T |
